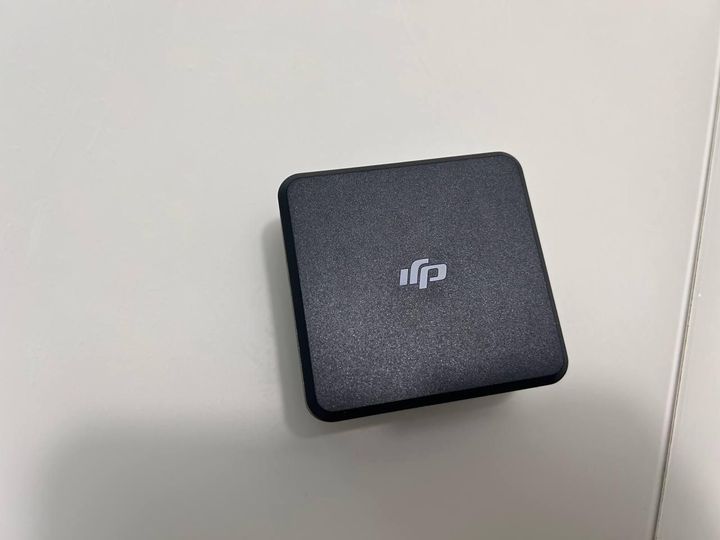

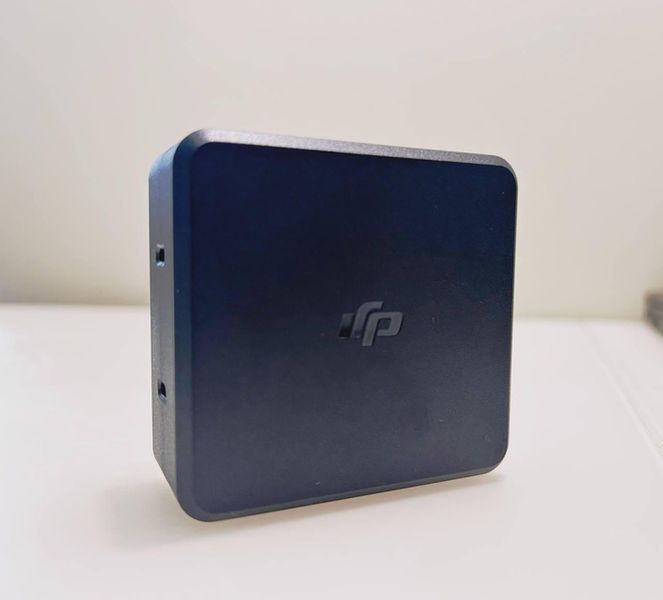

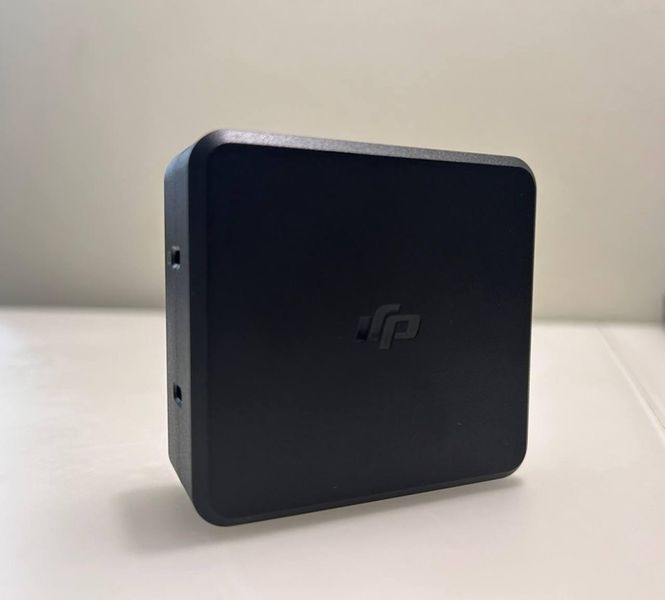

A 100 W mains power adapter with two USB-C ports for charging batteries and remote controllers of DJI Mavic 3 series drones. It runs on a standard 100–240 V supply, so it can be used at a fixed workstation as well as in the field with a generator or inverter.
The adapter has two USB-C output ports, allowing the aircraft's Intelligent Flight Battery and a remote controller or mobile device to be charged at the same time. Power is allocated between the ports dynamically according to load: when both ports are in use, the maximum output per port is 82 W. Support for the PD and PPS fast-charging protocols allows smartphones, tablets and other USB-C devices to be powered. The AC power cable is detachable, which simplifies transport and replacement of the plug for the regional socket standard.
Key advantages
- 100 W total output power
- Two USB-C ports with dynamic power allocation
- Simultaneous charging of battery and remote controller
- PD and PPS protocol support for third-party USB-C devices
- Universal 100–240 V, 50/60 Hz input
- Detachable AC power cable
Technical specifications
| Parameter | Value |
|---|---|
| Input voltage | 100–240 V (AC), 50–60 Hz, 2.5 A |
| Output power | 100 W (when both ports are used — up to 82 W per port, dynamically allocated) |
| Output ports | 2 × USB-C |
| Supported protocols | PD, PPS |
| Operating temperature | 5…40 °C |
| Charging time: DJI Mavic 3 Intelligent Flight Battery | approx. 1 h 10 min |
| Charging time: DJI RC-N1 | approx. 2 h 40 min |
| Charging time: DJI RC | approx. 2 h |
| Charging time: DJI RC Pro | approx. 2 h |
| Charging time: DJI RC Pro Enterprise | approx. 1 h 30 min |
| Compatibility | DJI Mavic 3, Mavic 3 Cine, Mavic 3 Classic, Mavic 3 Pro, Mavic 3 Pro Cine, Mavic 3 Enterprise Series, DJI Air 3, DJI Avata, DJI Goggles 2 Battery |
Package contents
- DJI 100W USB-C Power Adapter — 1 pc.
Applications
Charging batteries and remote controllers of DJI Mavic 3 series drones at base, in a mobile workshop, or in the field where mains power is available. Also suitable for powering the operator's tablet or smartphone via USB-C.
