📝 UPS SEVEN UPS-7960 60W LiFePO4

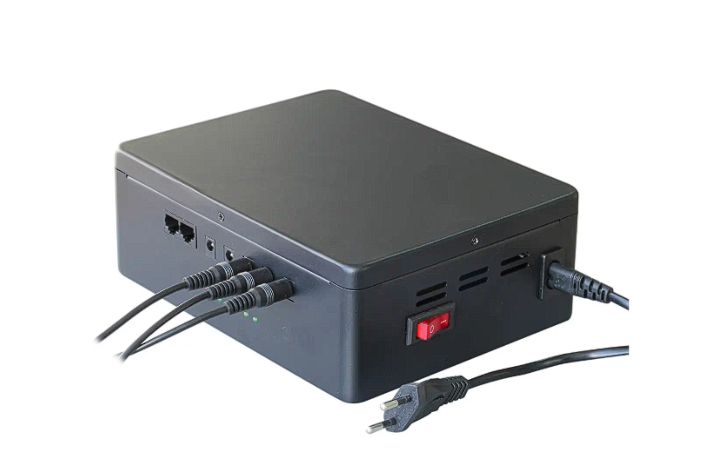

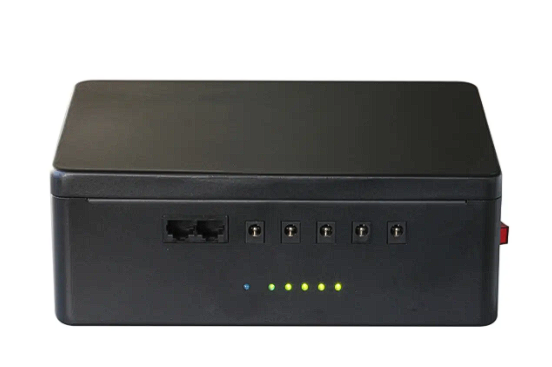

UPS SEVEN UPS-7960 60W LiFePO4 is a universal MINI UPS with a built-in LiFePO4 battery designed for backup power of telecommunication, networking and security equipment. The device ensures continuous operation of PoE video cameras, routers, modems, switches, IP phones, video surveillance systems and access control systems during a loss of 220 V mains power.
With two DC 12 V outputs up to 5A, three DC 12 V outputs up to 3A and an integrated IEEE 802.3af/at PoE injector (48 V), UPS SEVEN UPS-7960 60W LiFePO4 can simultaneously power multiple devices of different types without additional voltage converters. The built-in LiFePO4 battery with a capacity of 192 Wh provides long autonomous operation up to 8 hours for typical IP video surveillance systems and stable voltage under load.
🫡 We are a team of veterans
In field conditions and at facilities with unstable power supply, we use MINI UPS units of this class to back up communication nodes, video surveillance and access control systems. LiFePO4 batteries demonstrate increased reliability, thermal stability and a significantly longer cycle life compared to lead-acid solutions.
SEVEN UPS-7960 is well suited for building autonomous power systems in vehicles, field observation posts, mobile network nodes and stationary security positions. The integrated 48 V PoE output simplifies connection of IP cameras, while multiple 12 V outputs allow simultaneous powering of a router, recorder and auxiliary equipment.
⚙️ Technical specifications
| Parameter | Value |
|---|---|
| Device type | MINI UPS / Uninterruptible Power Supply |
| Maximum output power | 60 W |
| Input voltage | 85–270 V AC |
| DC outputs 12 V (5A) | 2 ports |
| DC outputs 12 V (3A) | 3 ports |
| PoE injector | IEEE 802.3af/at, 48 V 0.7 A |
| Battery type | LiFePO4 (4 cells 33140) |
| Battery capacity | 192 Wh (60000 mAh at 3.2 V) |
| Estimated backup time | up to 8 h (1 NVR + 4 IP cameras) |
| Protection | overcharge, overdischarge, short circuit |
| Indicators | LED status indicators |
| Operating temperature (charge) | 0°C ~ +40°C |
| Operating temperature (discharge) | -10°C ~ +40°C |
| Dimensions | 218×168×78 mm |
| Weight | 2.5 kg |
💬 Comment / comments
SEVEN UPS-7960 60W is a versatile compact solution for backup power of networking and security equipment. The LiFePO4 battery ensures stable output voltage, long service life and safe operation even under intensive charge and discharge cycles.
The presence of a 48 V PoE output enables direct powering of IP cameras and network devices without additional injectors, reducing installation complexity. Multiple 12 V outputs create an autonomous power contour for simultaneous operation of a recorder, cameras, router and other critical equipment.
🎯 Who it is suitable for
Military units — for backup power of field communication nodes, video surveillance systems, mobile command posts and vehicle-based monitoring systems.
Video surveillance and security operators — for uninterrupted operation of IP cameras, recorders, access control systems and intercoms.
Network engineers and telecom specialists — for backup powering of routers, switches, modems and IP telephony infrastructure.
Security system integrators — for building autonomous security complexes with PoE power and multiple DC power lines.
Civilian users and mobile scenarios — for backup powering of routers, LED lighting, 12 V cameras, use in vehicles or as a portable power source during power outages.
