DJI Zenmuse H20N

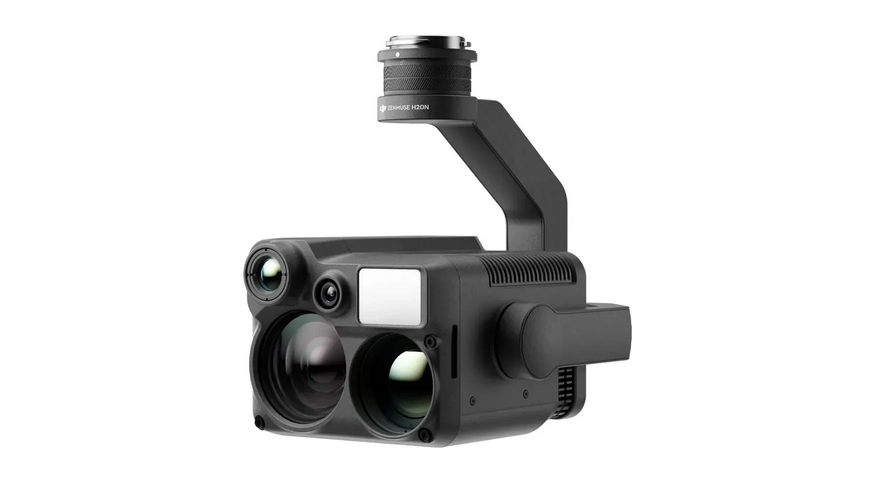

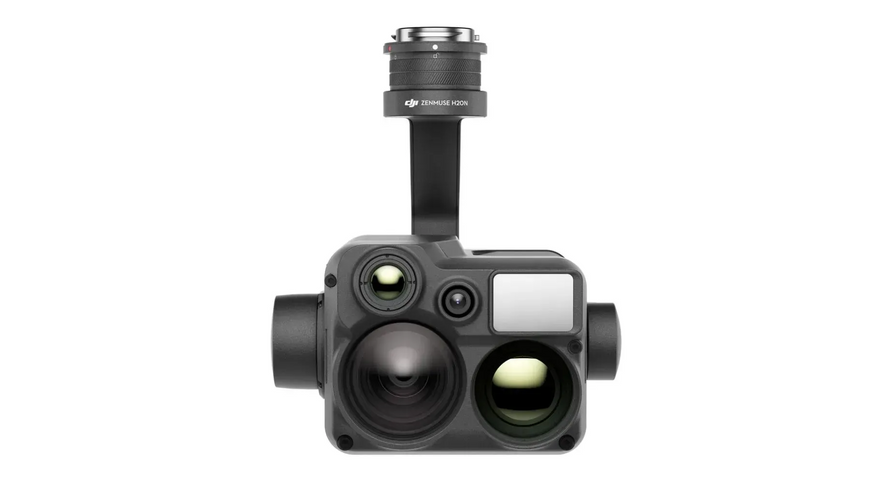

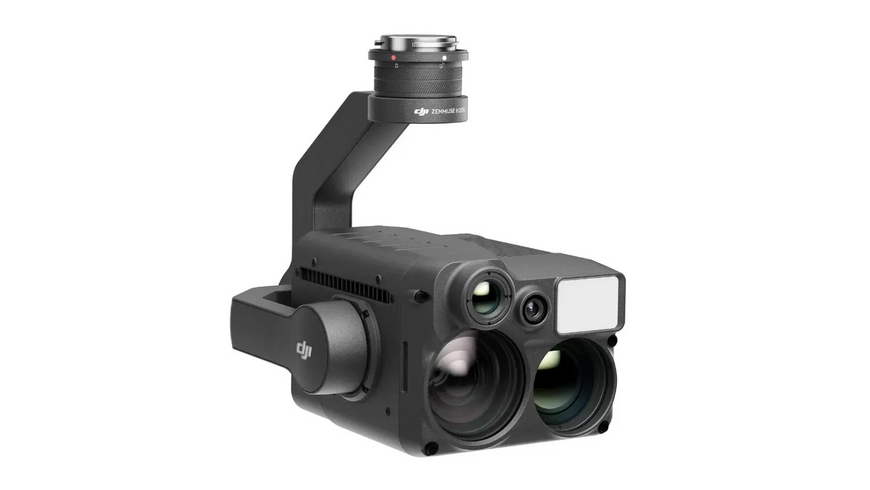

DJI Zenmuse H20N is a multi-sensor night payload module for professional quadcopter platforms, combining a zoom camera, wide-angle camera, two thermal cameras, and a laser rangefinder in a single stabilized unit. The system is designed for night operations, search, surveillance, use, and inspections, enabling simultaneous collection of optical, infrared, and range data from the air.

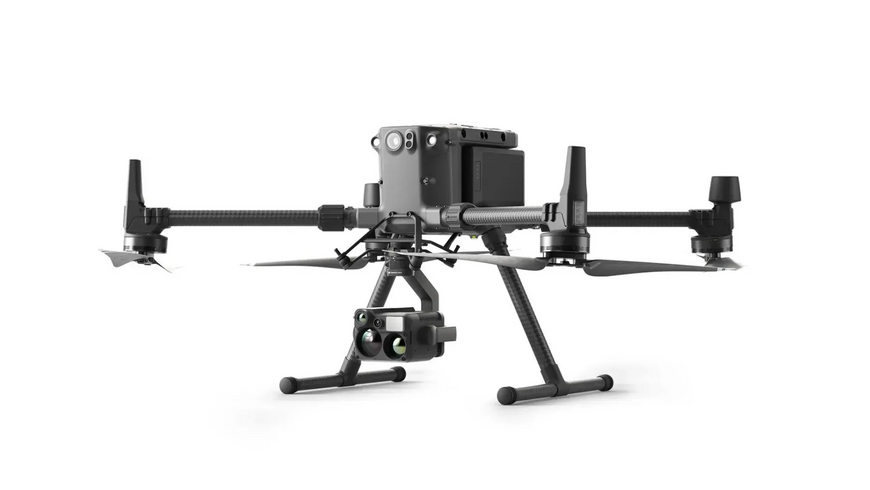

The module integrates with the DJI Matrice 300 RTK platform, providing high stability, precise targeting, and synchronized sensor operation. The combination of night optics, thermal vision, and laser distance measurement allows operators to obtain a complete situational picture in darkness, smoke, complex terrain, or low-visibility environments.
We are a team
In real operational conditions, night multi-sensor payloads of this class allow simultaneous visual observation, thermal search, and distance measurement without changing platforms or landing the quadcopter. This is critical when operating at night, in smoke, in complex terrain, or during the search for vehicles, people, or heat sources.
Specifications
| Parameter | Value |
|---|---|
| Product name | Zenmuse H20N |
| Dimensions | 178 × 135 × 161 mm |
| Weight | 878 ±5 g |
| Protection rating | IP44 |
| Laser safety | Class 1M (IEC 60825-1:2014) |
| Compatibility | DJI Matrice 300 RTK |
| Stabilization | Gimbal, angular vibration ±0.01° |
| Mounting | Detachable |
| Operating temperature | –20…+50°C |
| Storage temperature | –20…+60°C |
Zoom Camera
| Parameter | Value |
|---|---|
| Sensor | CMOS 1/1.8”, 4 MP |
| Focal length | 6.8–119.9 mm (equiv. ~32.7–574.5 mm) |
| Aperture | f/2.8–f/11 (day), f/1.6–f/11 (night) |
| Focus | from 1 m to ∞ (wide), from 8 m to ∞ (tele) |
Wide Camera
| Parameter | Value |
|---|---|
| Sensor | CMOS 1/2.7”, 2 MP |
| Diagonal FOV | 73.6° |
| Focal length | 4.5 mm (equiv. ~29 mm) |
| Aperture | f/2.8 |
| Focus | from 1 m to ∞ |
Thermal Tele Camera
| Parameter | Value |
|---|---|
| Sensor | VOx microbolometer |
| Diagonal FOV | 12.5° |
| Focal length | 44.5 mm (equiv. ~196 mm) |
| Aperture | f/1.2 |
| Focus | from 45 m to ∞ |
Thermal Wide Camera
| Parameter | Value |
|---|---|
| Sensor | VOx microbolometer |
| Diagonal FOV | 45.5° |
| Focal length | 12 mm (equiv. ~53 mm) |
| Aperture | f/1.0 |
| Focus | from 5 m to ∞ |
Laser Rangefinder
| Parameter | Value |
|---|---|
| Wavelength | 905 nm |
| Max power | 3.5 mW |
| Pulse width | 6 ns |
| Range | 3–1200 m |
| Accuracy | ±(0.2 m + D×0.15%) |
Storage
| Parameter | Value |
|---|---|
| Memory cards | microSD UHS-I up to 128 GB |
| File system | exFAT |
Comment / comments
H20N is a specialized night multi-sensor module designed for low-light operations. The presence of two thermal cameras with different focal lengths allows combining wide coverage and detailed thermal observation, while the laser rangefinder adds precise distance measurement.
Who it is suitable for
Rescue teams — search for people in darkness, smoke, or complex terrain.
Engineers — inspections of facilities at night or in low-light environments.
Security services — monitoring perimeters and large areas at night.
