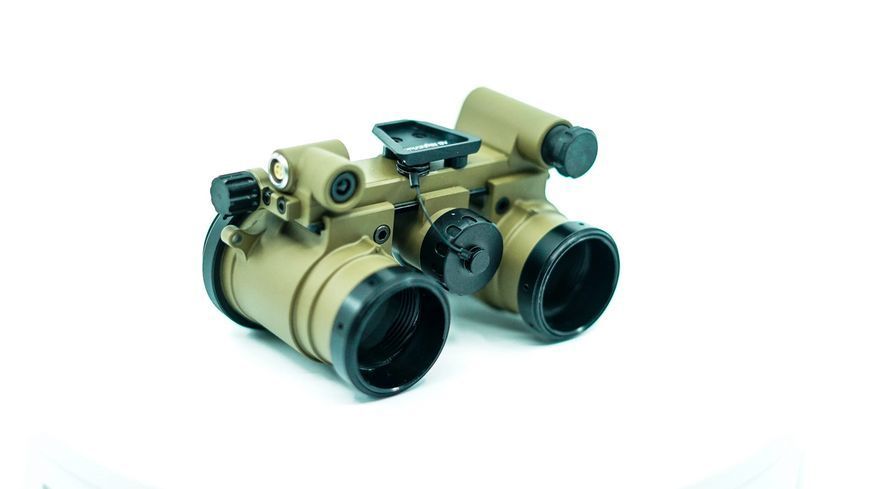

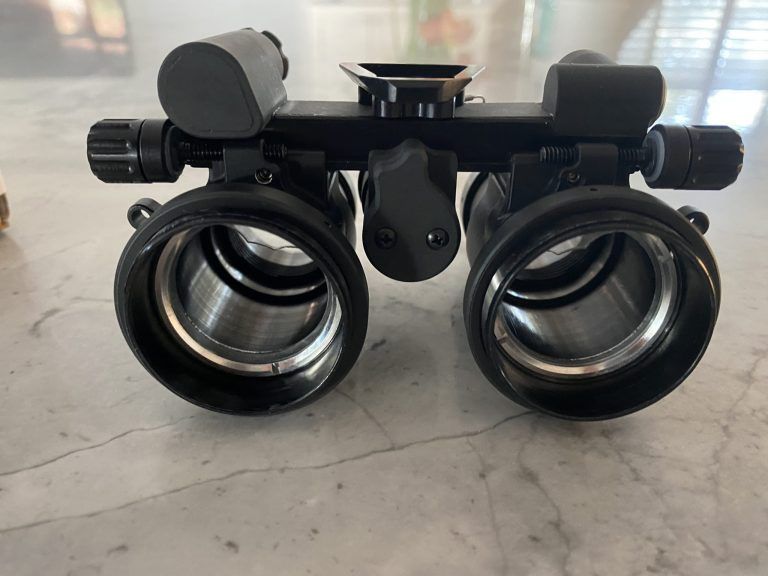

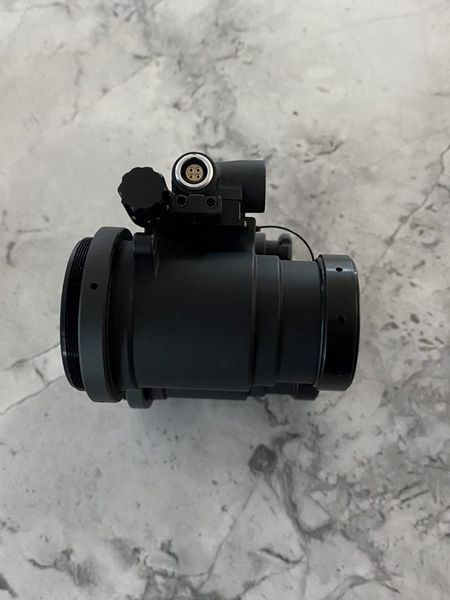

AB Night Vision RNVG is a highly durable and field-proven binocular NVG housing engineered for harsh operational environments. The monolithic 7075-aluminum CNC chassis delivers superior structural strength, hinge rigidity, and longevity while retaining intuitive PVS-14-style controls. The housing is compatible with PVS-14 optics and MX-10160 tubes, features an integrated IR illuminator, and runs on 1×AA with a low-battery indicator.
We are a veteran-led team
In real-world deployment, RNVG provides stable IPD mechanics, zero-play alignment, impact and vibration resistance, and dependable helmet balance — a platform built for missions where ruggedness and reliability come first.
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Product type | Binocular NVG housing (housing only) |
| Model | AB Night Vision RNVG |
| Power | 1×AA, low-battery indicator |
| Runtime | ≈ 16 hours (lithium cell) |
| Optics compatibility | PVS-14 objective & eyepiece |
| Focus range | 9.8″ → ∞ |
| Diopter range | −6 … +2 |
| IPD range | 51–73 mm, detent-jack adjusters |
| Field of view | 40° |
| Magnification | 1× |
| Eye relief | 25 mm |
| Housing material | 7075 aluminum, monolithic CNC |
| Weight | 555 g (no battery) / ~570 g with battery |
| IR illuminator | Integrated; supports spot / flood adapters |
| Tube compatibility | MX-10160 |
| Waterproof rating | Up to 20 m (66 ft) |
| Dimensions | 4.7″ × 4.2″ × 2.8″ |
| Package contents | Housing, light pipes, tube retainers, focus stops, optic lift (no optics or tubes) |
Quality class / commentary
RNVG belongs to the ruggedized professional class — prioritizing maximum structural strength, consistency, and service longevity over ultralight weight.
Recommended for
-
military & tactical helmet-borne users
-
extended field missions in harsh environments
-
integration / service builds based on PVS-14 & MX-10160
