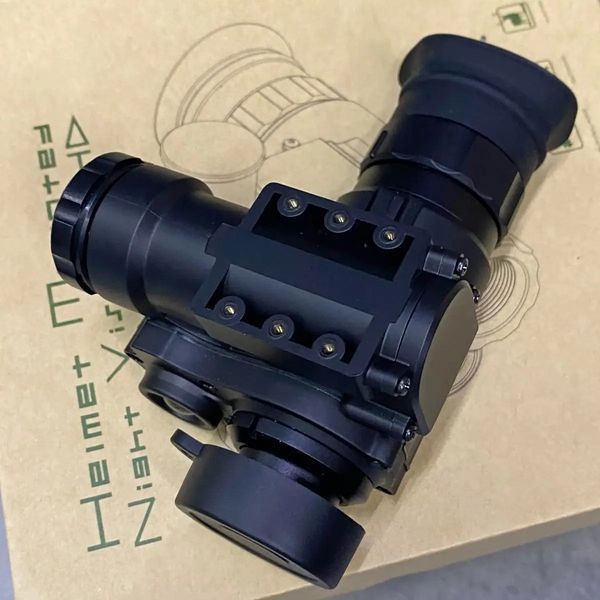

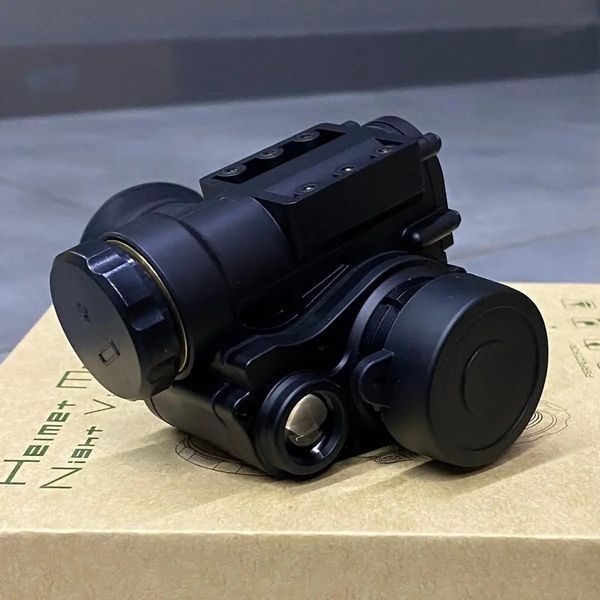

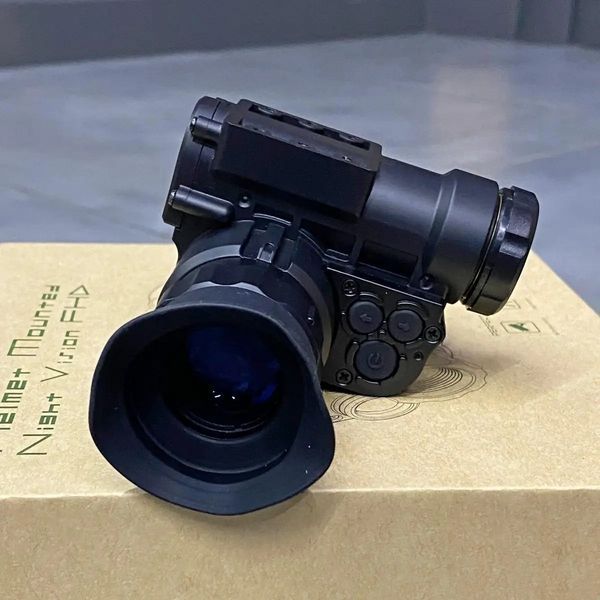

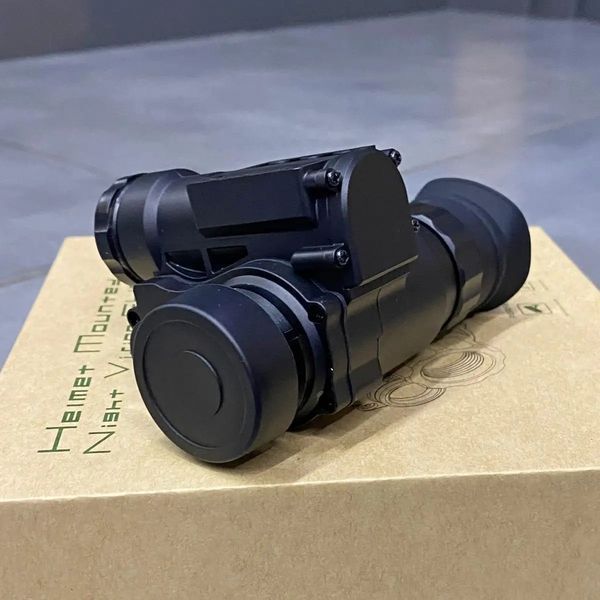

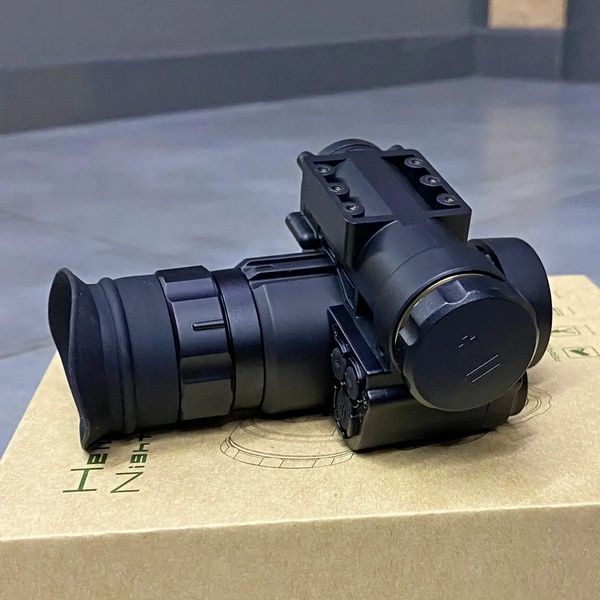

The Spina Optics NVG-10 is a digital night-vision monocular that can be used handheld or integrated into a helmet-mounted setup. A low-light CMOS sensor with a built-in 850-nm IR illuminator enables operation in full darkness. The IR intensity is adjustable, however it cannot be fully disabled and is automatically activated in dark environments. The device supports Wi-Fi connectivity with a mobile app for photo and video capture. The housing is IP66-rated, and the monocular can be mounted on either side of a helmet. Power is supplied via a 18650 battery (up to 5 hours of runtime).
💪 We are a team of veterans
In real-world use, the NVG-10 is an entry-to-mid digital short-/mid-range solution focused on practicality, lightweight operation and mounting flexibility. It is not an analogue I² military-grade system and is intended to operate with constant IR illumination and digital image processing. Strengths include Wi-Fi integration, weather protection and versatile deployment options.
⚙️ Technical specifications
| Parameter | Value |
|---|---|
| Type | Digital night-vision monocular |
| Optical magnification | 1× |
| Digital zoom | 1× / 2× / 3× |
| Objective lens | 17.5 mm |
| Field of view | 40° |
| Detection (low-light) | up to 200 m |
| Detection (total darkness) | up to 100 m |
| Eye relief | 25 mm |
| Exit pupil | 8 mm |
| Diopter adjustment | +2…−5 |
| Sensor | CMOS 1/2" |
| Sensor resolution | 1080 lines |
| Display | 0.38" |
| IR illuminator | 850 nm, 1 W (3 levels) |
| Wi-Fi / mobile app | yes, photo/video |
| Power | 1× 18650 (not included) |
| Runtime | 3 h (Wi-Fi+IR) / 5 h (Wi-Fi only) |
| Protection rating | IP66 |
| Operating temp | −40…+50 °C |
| Dimensions | 110 × 80 × 57 mm |
| Weight | 245 g |

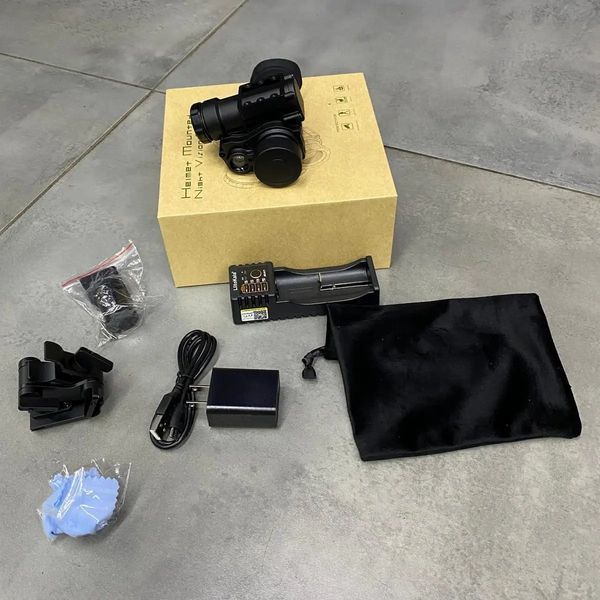

Package contents: monocular, helmet mount, Picatinny mount, power adapter & USB cable, 18650 charger, eyecup & cap, carry pouch.
💬 Commentary / quality level
A practical digital NV platform prioritising usability and recording capability. Constant IR emission limits covert use, but the device performs well for navigation, patrol and support tasks.
🎯 Recommended for
— users seeking a digital NV monocular with Wi-Fi recording
— support and volunteer roles
— civilian short-/mid-range observation
