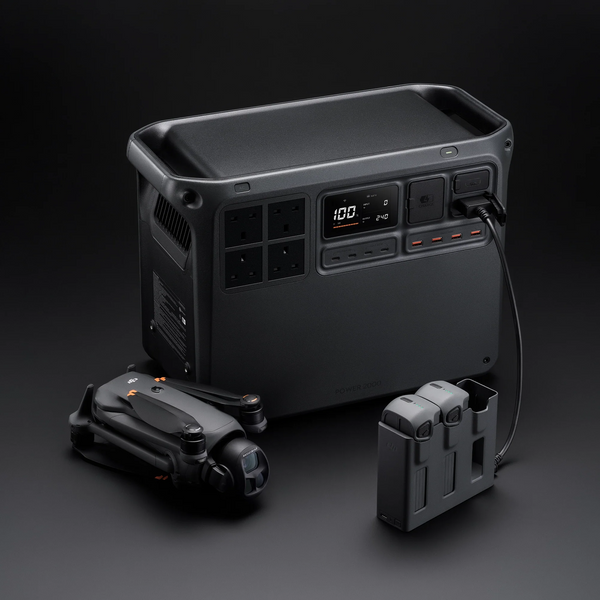

The DJI Power 2000 is a portable power station with a 2048 Wh capacity and 3000 W continuous AC output. It is intended for off-grid operation of field equipment: UAV battery charging hubs, ground control stations, laptops, communication gear, lighting and household appliances. Capacity scales up to 22,528 Wh by connecting additional DJI Power Expansion Battery 2000 units (up to ten modules).
The station is built around lithium ferrophosphate (LFP) cells that retain over 80% of their capacity after 4000 charge-discharge cycles. The port panel includes four AC outlets (220–240 V, 13.6 A), four USB-C ports (two rated 140 W with PD 3.1 EPR support and two rated 65 W), four USB-A ports with QC 2.0/3.0, and two SDC ports for fast solar and car charging. Grid recharging runs at up to 2200 W: 0–80% in 45 minutes. Hybrid recharging allows simultaneous use of grid power together with a solar panel or a vehicle electrical system. In UPS mode the station transfers the connected load to its own power within 0.01 s after the mains voltage drops. The housing uses flame-retardant materials, the boards carry a sub-nano protective coating, and the inverter is potted. Control and status monitoring are handled through the app over Wi-Fi or Bluetooth 5.0.
Key Advantages
- 2048 Wh capacity with 3000 W continuous output — powers most field and household equipment without inrush-current limitations for typical devices.
- Modular expansion up to 22,528 Wh without replacing the base unit.
- LFP cell service life: over 80% capacity retained after 4000 cycles.
- Fast grid recharging: 0–80% in 45 minutes at 2200 W.
- UPS mode with 0.01 s transfer time for uninterrupted supply of critical equipment.
- Hybrid recharging from the grid simultaneously with a solar panel or vehicle power.
- Noise level of no more than 29 dB in standard recharging mode.
- Operation at altitudes up to 5000 m and power delivery across a −10 to +45 °C range.
- Remote monitoring of charge level, load and operating modes via the app.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DYM2000H (220–240 V) / DYM2000L (100–120 V) |
| Cell chemistry | LFP (lithium ferrophosphate) |
| Capacity | 2048 Wh |
| Maximum expanded capacity | 22,528 Wh (up to 10 expansion batteries) |
| Cycle life | over 80% capacity after 4000 cycles |
| AC output | 220–240 V, 13.6 A, 50/60 Hz (DYM2000H) |
| AC output (bypass mode) | 220–240 V, 10 A (DYM2000H) |
| USB-C output | 5/9/12/15/20/28 V, 5 A; C1 and C2 up to 140 W, C3 and C4 up to 65 W |
| USB-A output | 5 V/3 A, 9 V/2 A, 12 V/2 A; up to 24 W per port; QC 2.0/3.0 |
| SDC output | SDC 1 and SDC 2: 9–28 V, max current 12 A |
| AC input | 220–240 V, max current 10 A (DYM2000H) |
| SDC input | SDC 1 and SDC 2: 32–58.4 V, max current 60 A |
| Grid recharging time | 0–80% in 45 min |
| UPS transfer time | 0.01 s |
| Number of ports | 4 × AC out, 4 × USB-C, 4 × USB-A, 2 × SDC, 1 × AC in |
| Noise level | up to 29 dB (standard recharging mode) |
| Wireless interfaces | Wi-Fi 802.11 b/g/n 2.4000–2.4835 GHz (< 20 dBm); Bluetooth 5.0 (< 7 dBm) |
| Operating temperature (power supply) | −10 to +45 °C |
| Recharging temperature | 0 to +45 °C |
| Storage temperature | −10 to +45 °C |
| Max operating altitude | 5000 m |
| Dimensions | 448 × 225 × 324 mm (L × W × H) |
| Weight | approx. 22 kg |
Package Contents
- DJI Power 2000 power station — 1 pc.
- AC power cable — 1 pc.
- User documentation
Applications
Off-grid power for UAV control points and field battery charging hubs, support of communication and relay equipment, power supply for field workshops, backup power for equipment during grid outages, and operation of production crews and training sites away from mains power.
