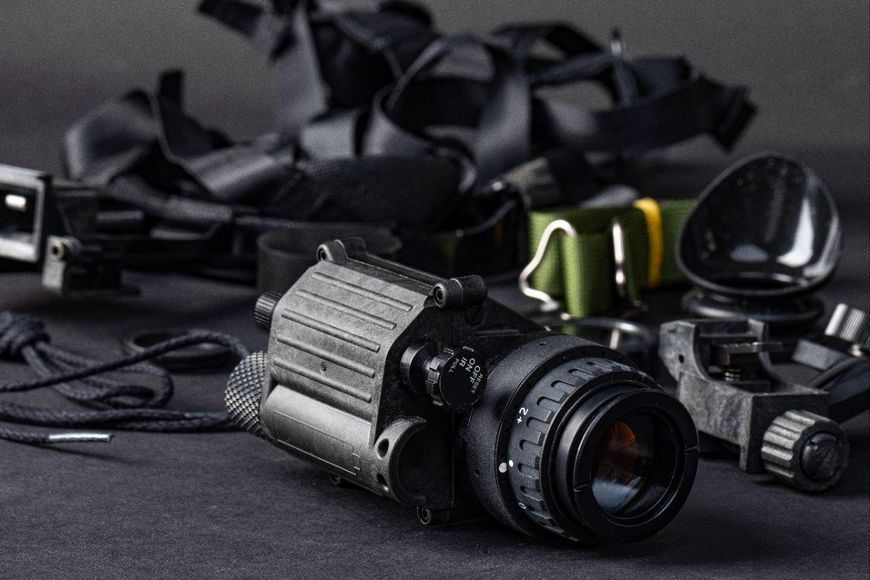

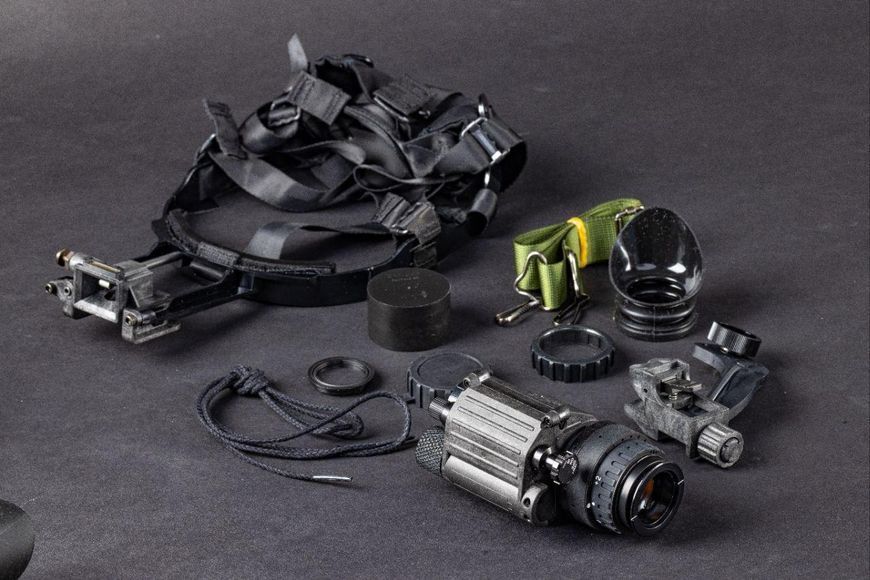

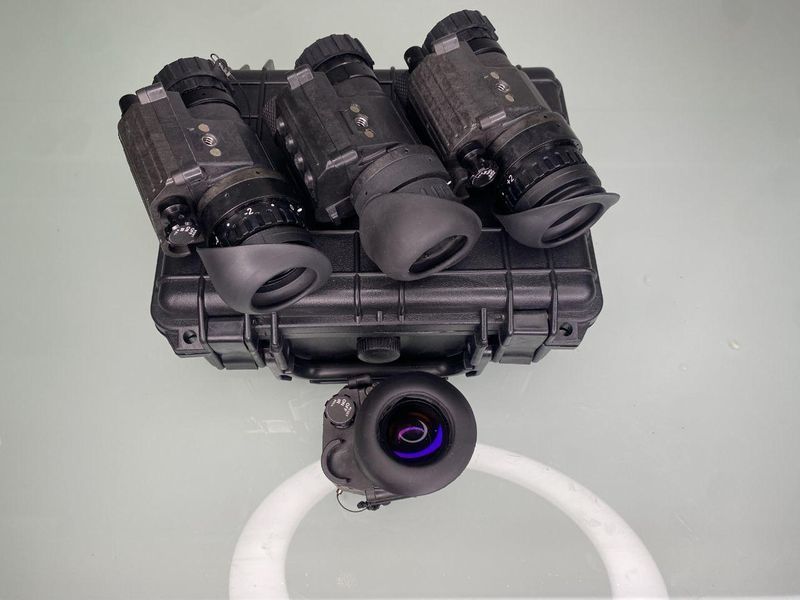

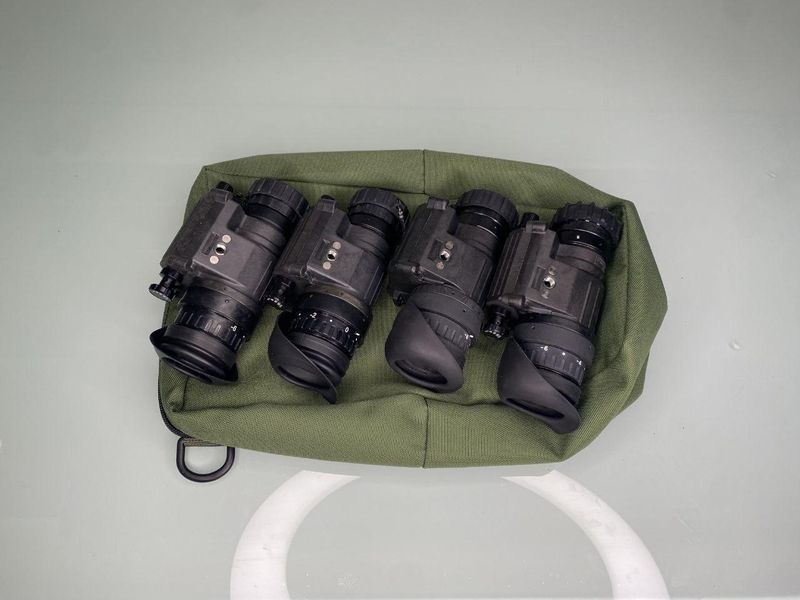

Night Vision Device PVS-14 / L3 Unfilmed White Phosphor (Carson Housing)
The PVS-14 L3 Unfilmed is a premium night-vision monocular built around reference-grade L3 Unfilmed White Phosphor image intensifier tubes installed in a military-spec Carson PVS-14 housing.
The MX10160UW tubes, produced under aviation-grade contracts (series 1597 and related), deliver a minimum FOM of 2366+, exceptionally high sensitivity, low noise, and the signature “crystal-clear” L3 image.
This is one of the most technologically advanced and combat-proven PVS-14 configurations available, meeting the strict standards of U.S. military and aviation programs.
🟦 We are a team of veterans
We have seen how L3 Unfilmed tubes perform in real combat.
When we say that this PVS-14 meets the standards of professional units, we say it from firsthand experience.
Unfilmed tubes provide stable, extremely clean imagery, outperform in low-light conditions, and withstand sudden light exposure better than many other tubes.
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Housing | Carson PVS-14 (MIL-SPEC) |
| Tube Type | L3 Unfilmed White Phosphor (Gen 3, aviation series) |
| Tube Format | MX10160UW |
| Phosphor | P45 (white) |
| Figure of Merit (FOM) | ≥ 2366 (often 2400–2600+) |
| SNR | 30–36+ |
| Resolution (RES) | 72–81 lp/mm |
| Photocathode Sensitivity | 2000–2600 μA/lm |
| Auto-Gating | Yes |
| Halo | 0.7–0.9 |
| EBI | Very low (0.2–0.6) |
| Gain | 10 000–20 000 cd/m²/lx |
| Power | 1× AA (up to 40 hours) |
| Water Resistance | IP66 |
| Mounts | J-Arm / Dovetail / Helmet Mount |
| Weight | ~355 g |
| Tube Service Life | 10 000+ hours |
💬 Quality Commentary
L3 Unfilmed tubes are considered the gold standard of Gen 3 night-vision technology.
Key strengths include:
-
unmatched low-light sensitivity
-
extremely low noise and minimal EBI
-
superior performance without moonlight
-
high resilience to sudden bright-light exposure
-
signature L3 “clean, milky” image
This PVS-14 performs at a level comparable to the AN/PVS-31A, but in a monocular form factor.
The Carson housing is a proven, rugged MIL-SPEC design trusted worldwide.
🎯 Ideal For
-
Reconnaissance, SOF, assault units
-
FPV / long-range drone operators
-
Volunteer procurements for military units
-
Search-and-rescue teams
-
Professional users who need maximum PVS-14 performance
