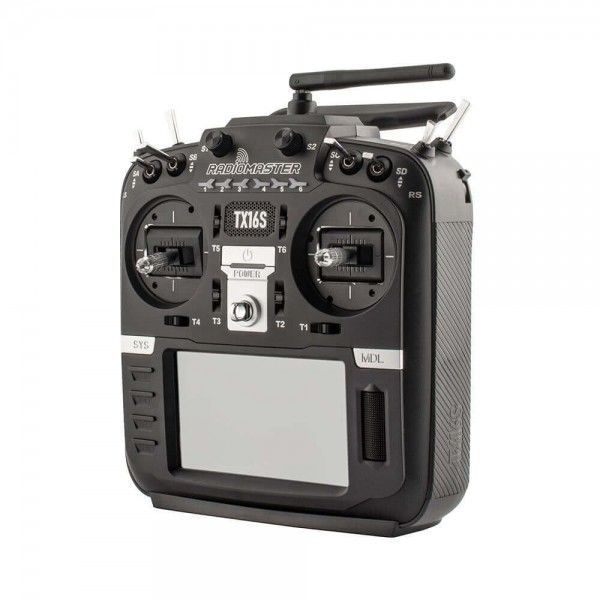

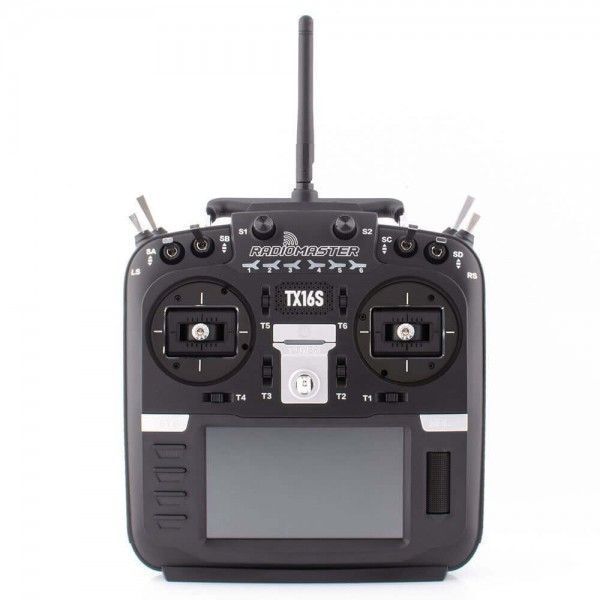

RadioMaster TX16S MKII (Hall V4) 4in1 is a modern 16-channel radio control transmitter operating in the 2.4 GHz band, designed for versatile use in RC and applications. Powered by OpenTX, it features a bright 4.3-inch touchscreen for intuitive access to advanced settings, mixes and telemetry. The integrated 4-in-1 multi-protocol module allows compatibility with a wide range of receivers without external modules. A control range of up to approximately 2 km and USB connectivity for simulator use make the TX16S MKII suitable for both training and real-world flying.
We are a team
The TX16S MKII is a capable control platform rather than a basic consumer transmitter. Sixteen channels, telemetry support and multi-protocol operation provide flexibility across different models. For training and auxiliary quadcopter scenarios, it is useful for simulator work and control logic testing. As a civilian transmitter, real-world effectiveness always depends on configuration, firmware and receiver choice.
Technical specifications
| Parameter | Value |
|---|---|
| Device type | radio control transmitter |
| Channels | 16 |
| Operating frequency | 2.400–2.480 GHz |
| Module | internal 4-in-1 multi-protocol |
| Supported protocols | FlySky AFHDS2A, FrSky ACCST, Futaba, Hubsan, Spektrum DSM/DSMX, SYMA, others |
| Display | 4.3″ color touchscreen |
| Firmware | OpenTX |
| Processor | STM32F429BIT6 |
| Telemetry support | yes |
| Control range | up to ~2 km* |
| Interfaces | USB-C, UART |
| Operating voltage | 7.0–8.4 V |
| Simulator support | yes |
Comment / quality level
RadioMaster TX16S MKII (Hall V4) 4in1 sits in the upper mid-range of universal RC transmitters. Fourth-generation Hall gimbals provide smooth, durable control, while OpenTX enables extensive customization. The built-in 4-in-1 module significantly enhances versatility, making it a strong choice for users managing multiple models and protocols.
