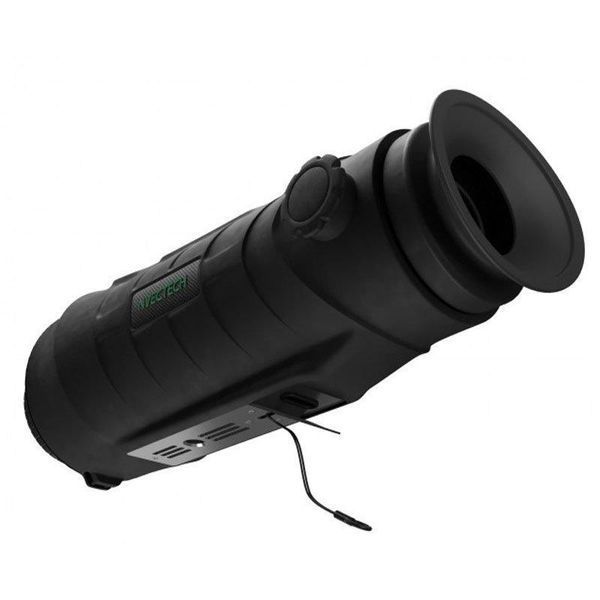

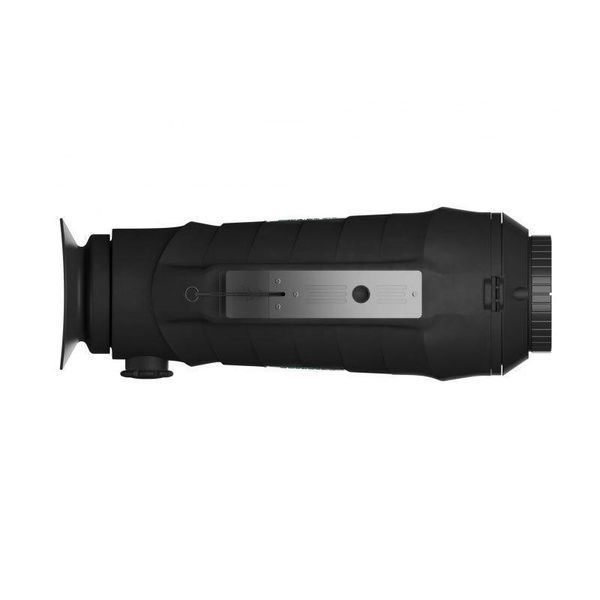

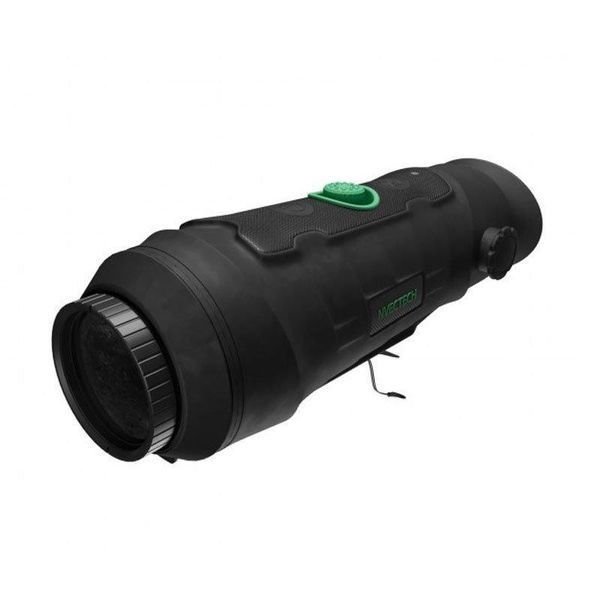

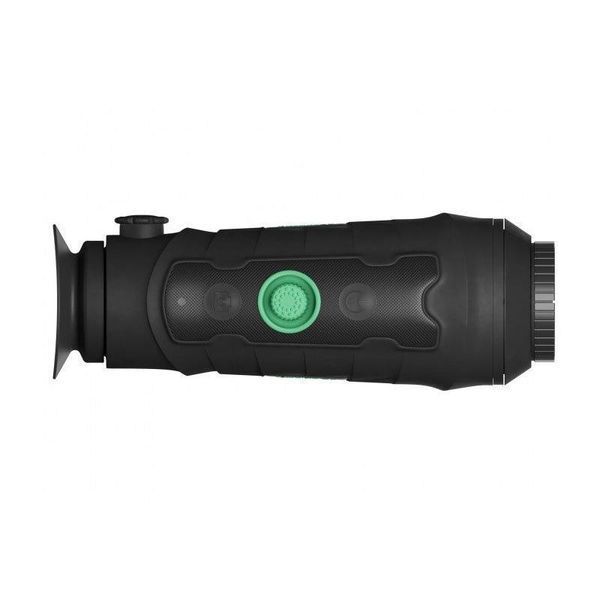

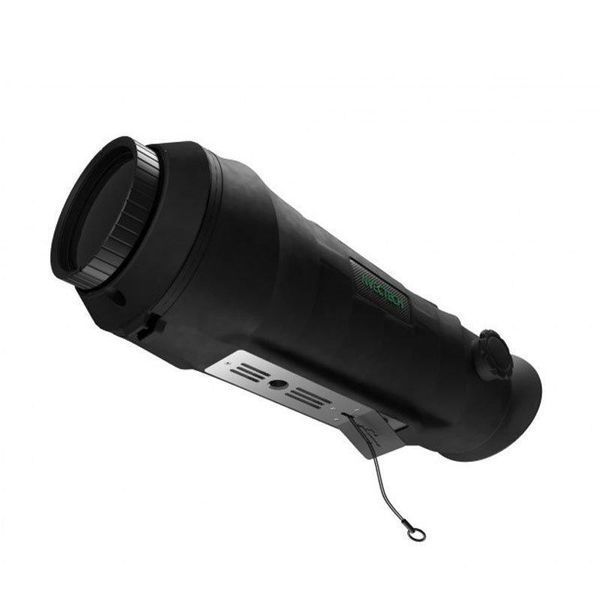

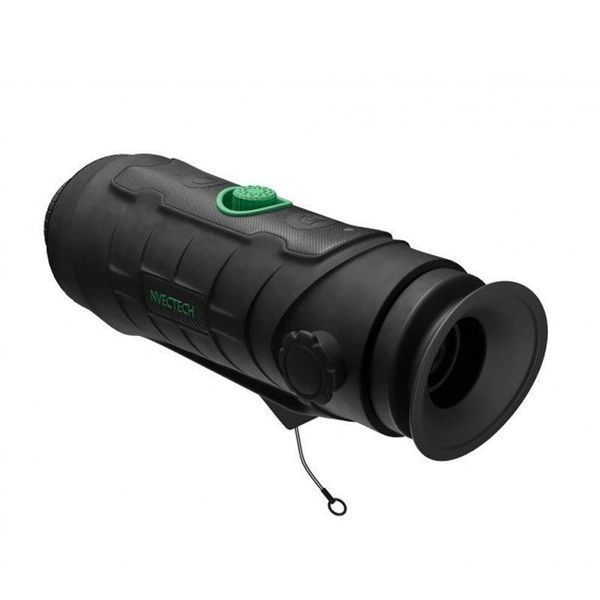

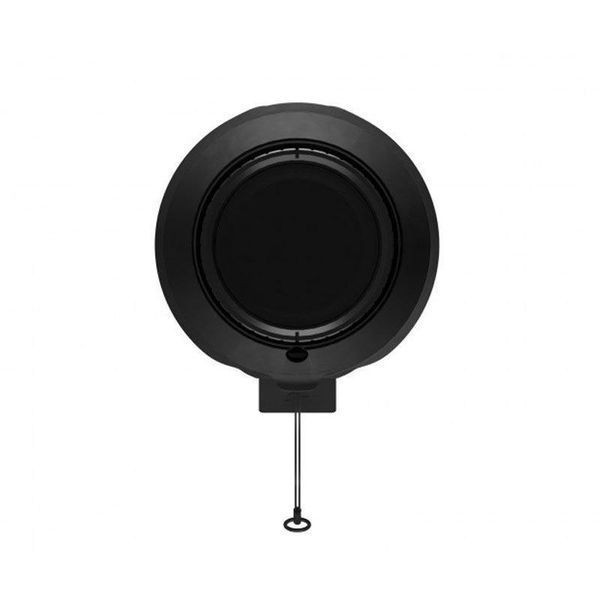

NVECTECH PATRIOT L50 NETD ≤20 mK thermal imaging monocular is a compact mid-range thermal observation device designed for detecting and identifying heat signatures in nighttime, low-visibility and adverse weather conditions. The 50 mm objective lens provides a narrow field of view and increased detection capability.

The device is built around a 384×288 VOx microbolometer with a 12 μm pixel pitch and thermal sensitivity of NETD ≤20 mK @300K, delivering stable and contrast-rich imagery. A 0.39-inch OLED display with 1024×768 resolution ensures comfortable long-term viewing.

The monocular supports photo and video recording, thermal tracking, GPS and 32 GB of internal memory. IP67 protection and 1-meter drop resistance make it suitable for demanding field use.

🫡 We are a team of veterans

We are a team of veterans selecting thermal imaging equipment based on real operational experience. NVECTECH PATRIOT L50 NETD ≤20 mK was evaluated for sensor stability, effectiveness of the 50 mm lens, battery endurance and overall durability.

⚙️ Specifications

Parameter	Value
Device type	Thermal imaging monocular
Sensor resolution	384×288
Detector type	VOx microbolometer
Pixel pitch	12 μm
Thermal sensitivity (NETD)	≤20 mK
Spectral range	8–14 μm
Frame rate	50 Hz
Field of view	5.3° × 4.0°
Objective lens	50 mm
Display type	OLED
Display size	0.39″
Display resolution	1024×768
Eye relief	40 mm
Diopter adjustment	−5 to +5
GPS	Yes
Memory	32 GB
Thermal tracking	Yes
Photo, recording, playback	Yes
Battery type	Built-in lithium-ion battery 18650 ×2
Continuous operating time	≥12 hours
Weight	600 g
Protection rating	IP67, 1 m drop resistance
Dimensions	67×63×190 mm

💬 Comment

NVECTECH PATRIOT L50 NETD ≤20 mK offers a reliable balance of detection range, image clarity and durability, making it suitable for professional thermal observation tasks.

🎯 Who it is for

Primarily for military personnel, reconnaissance and observation specialists. It is also suitable for professional users requiring a compact, durable thermal monocular with recording and GPS capabilities.

Rate this item

NVECTECH PATRIOT L50 Thermal Monocular

Out of stock

SKU: 3427

Leave your feedback

$1 805

Features

Compass	No
Azimuth	No
Altitude sensor	No
Temperature sensor	No
GPS	No
Heat trace	No
Photo, recording, playback	No
