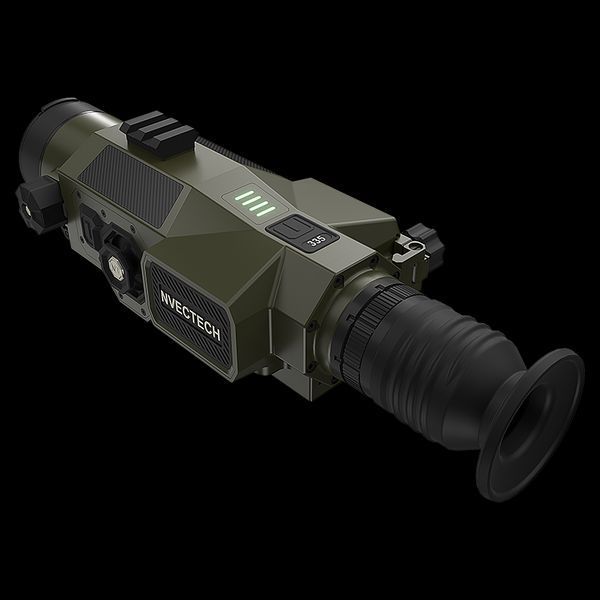

Defender 335 NETD ≤20 mK thermal imaging device is a professional thermal weapon sight designed for precise engagement of targets at extended ranges in combat and tactical environments. The unit is based on a 384×288 VOx microbolometer sensor with a 12 μm pixel pitch and a thermal sensitivity of ≤20 mK NETD, providing stable detection and confident target recognition in challenging conditions such as nighttime operations, fog, rain and smoke. An optical magnification of 3.3× combined with smooth and fast digital zoom from 1.0× to 4.0× enables effective operation at medium and long distances. Integration of a ballistic calculator, AI rangefinder, gyroscope, CSFBC system and GEO dot elevates the device into a fully integrated combat fire-control solution.
🫡 We are a team of veterans
We are a team of veterans selecting thermal weapon sights based on real combat experience. Defender 335 NETD ≤20 mK was evaluated for recoil resistance up to 10,000 J, ballistic calculation accuracy, reticle stability, durability of the aluminum alloy housing and usability during prolonged combat and tactical operations.
⚙️ Specifications
| Parameter | Value |
|---|---|
| Device type | Thermal weapon sight |
| Sensor resolution | 384×288 |
| Detector type | VOx microbolometer |
| Pixel pitch | 12 μm |
| Sensitivity (NETD) | ≤20 mK |
| Spectral range | 8–14 μm |
| Frame rate | 50 Hz |
| Detection range | up to 2000 m |
| Recognition range | up to 1300 m |
| Optical magnification | 3.3× |
| Digital zoom | 1.0–4.0×, smooth and fast |
| Field of view | 7.5° × 5.6° |
| Objective lens | 35 mm |
| Display | AMOLED 1024×768 |
| Eye relief | 45 mm |
| Diopter adjustment | −5 ~ +5 |
| Reticle | 12 |
| Reticle colors | Black, white, yellow, blue, green, red, auto |
| Ballistic calculator | Yes |
| AI rangefinder | Yes |
| Gyroscope | Yes |
| CSFBC | Yes |
| GEO dot | Yes |
| GPS / compass / azimuth | Yes |
| Internal memory | 64 GB |
| Photo, recording, playback | Yes |
| Maximum recoil | 10,000 J |
| Battery type | Replaceable 18650 ×2 |
| Operating time | ≥18 hours |
| Housing material | Aluminum alloy |
| Protection rating | IP67 |
| Operating temperature | −25 °C to +50 °C |
| Dimensions (with mount) | 379×75×110 mm |
💬 Comment
Defender 335 NETD ≤20 mK is designed for long-range professional use where magnification, precision and system integration are critical. It is a robust thermal weapon sight for demanding operational scenarios.
🎯 Who it is for
Primarily for military units, snipers, forward observers and special tactical teams. It is also suitable for professional security forces and advanced users requiring a thermal weapon sight with increased magnification and full combat functionality.
