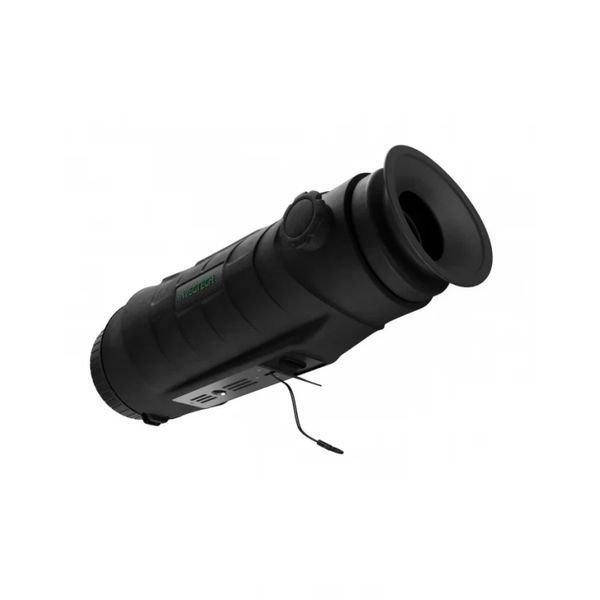

NVECTech Patriot H50 (640×512) is a professional thermal imaging monocular designed for real-world operational conditions. It is built around a highly sensitive VOx sensor with a 12 µm pixel pitch and a 50 mm objective lens, providing a detection range of up to 2900 meters. The device features long battery life, advanced image processing algorithms, and an integrated GPS module.

🫡 We are a veterans team

This device is focused on practical use. NVECTech Patriot H50 prioritizes autonomy, reliability, and operator safety, including the ability to operate without active Wi-Fi connections.

⚙️ Technical Specifications (TTX)

Parameter	Value
Device type	Thermal imaging monocular
Sensor	VOx, uncooled
Sensor resolution	640×512
Pixel pitch	12 µm
Sensitivity (NETD)	≈20 mK
Refresh rate	50 Hz
Objective lens	50 mm
Field of view	8.8° × 7.0°
Digital zoom	1× – 6×
Detection range	up to 2900 m
Image processing	3D-DNR, IDE, HDR
Color palettes	6
Display	OLED 0.39", 1024×768
Diopter adjustment	−5 … +5
GPS	yes
Internal memory	16 GB
Photo/video recording	yes
Wi-Fi	yes
Interface	USB Type-C
Power supply	2× 18650 Li-ion
Operating time	≥12 hours
Operating temperature	−20°C … +55°C
Protection rating	IP67
Weight	550 g

💬 Comment

NVECTech Patriot H50 delivers stable, high-quality thermal imagery and fast signal processing, making it effective for long-range observation. Extended battery life and the option to work without active wireless signals significantly enhance operational security.

🎯 Who it is suitable for

This monocular is primarily suitable for military units, reconnaissance teams, and observation posts. It is also appropriate for search and rescue operations, security services, and experienced users operating in demanding environments.

Rate this item

NVECTech Patriot H50 Thermal Imager Monocular (640x512) 2900m

Out of stock

SKU: 3422

Leave your feedback

$2 261

Features

Compass	No
Azimuth	No
Altitude sensor	No
Temperature sensor	No
Lens	50
Distance to the eyepiece	40.000
GPS	Yes
Heat trace	Yes
Photo, recording, playback	Yes
