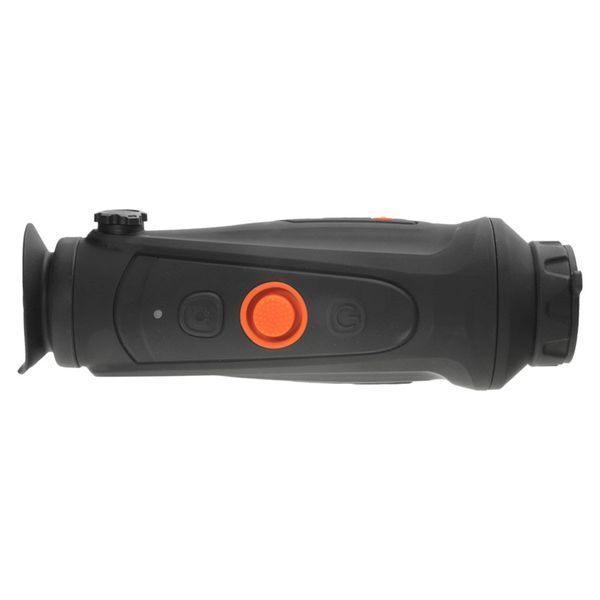

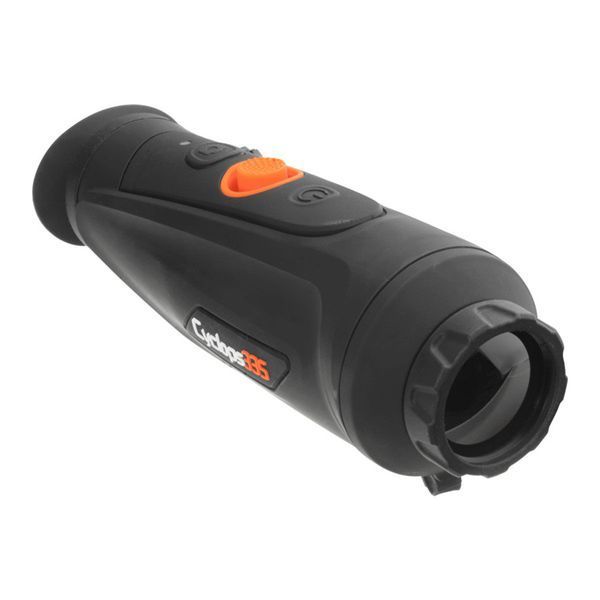

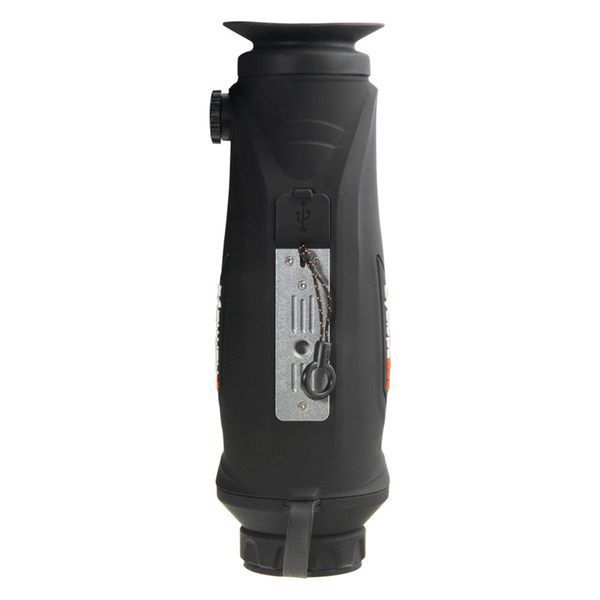

📝 Thermal Imaging Monocular ThermTec Cyclops 335 (384×288) 1650 m
Thermal imager ThermTec Cyclops 335 is a universal thermal imaging monocular designed for round-the-clock observation and detection of thermal targets at medium and long distances. The model combines a high-precision VOx 384×288 sensor, a 35 mm objective lens, and stable operation in difficult weather conditions, providing an informative thermogram even in fog, rain, smoke, or dense vegetation.
The 0.39″ OLED display with a resolution of 1024×768 forms a contrast and detailed image, and optical magnification with digital zoom allows effective operation both during target search and identification. The built-in GPS module provides coordinate determination and target tracking, which is especially important when performing tasks in field conditions.
🫡 We are a team of veterans
We test thermal imaging devices in real field conditions and understand the requirements for autonomy, ergonomics, and image stability. ThermTec Cyclops 335 provides confident human detection at distances up to 1650 m, a stable thermogram without jerks, and convenient joystick control even in complete darkness. Thanks to compact dimensions and IP67 protection, the device reliably operates during long observations in harsh operating conditions.
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Sensor resolution | 384×288 |
| Sensor type | VOx 12 µm, 50 Hz |
| Thermal sensitivity | ≤40 mK@300K |
| Display | OLED 1024×768, 0.39″ |
| Objective lens | 35 mm |
| Aperture | F/1.0 |
| Optical magnification | 3.37× – 20.2× |
| Digital zoom | 1× – 6× |
| Field of view | 7.5° × 5.6° |
| Eye relief | 40 mm |
| Human detection range | 1650 m |
| Human identification range | 875 m |
| Diopter adjustment | -5…+5 |
| Color palettes | white hot, black hot, red hot, purple, green, gold |
| Image auto-correction | 3D, IDE, HDR |
| Photo / video recording | yes |
| Built-in memory | 16 GB |
| Wi-Fi | yes |
| GPS | yes |
| Interface | USB Type-C |
| Power supply | built-in 18650 battery |
| Operating time | up to 12 hours |
| Protection rating | IP67 |
| Operating temperature | -20…+55 °C |
| Dimensions | 190×67×63 mm |
| Weight | 490 g |
💬 Comment / comments
ThermTec Cyclops 335 belongs to universal mid-range thermal imaging monoculars with extended detection range. The 35 mm objective lens provides a narrower field of view and better detail at long distances, which is suitable for observation over open terrain. The VOx 12 µm sensor with a 50 Hz refresh rate generates a stable thermogram without delays when tracking moving targets. The presence of GPS, Wi-Fi, and built-in photo and video recording expands the device’s capabilities when performing field tasks and documenting observations.
🎯 For whom it is suitable
Military units, reconnaissance and observation groups, who need a thermal imager with a detection range up to 1650 m for searching and tracking targets at any time of day.
Security units and special services, performing monitoring of territories, perimeters, and critical infrastructure in limited visibility conditions.
Rescue and search teams, operating at night, in fog or smoke-filled environments and requiring a stable thermogram for rapid human detection.
Hunters, ranger services and professional observers, who need a thermal imaging monocular with extended detection range, GPS tracking, video recording, and long autonomous operation.
