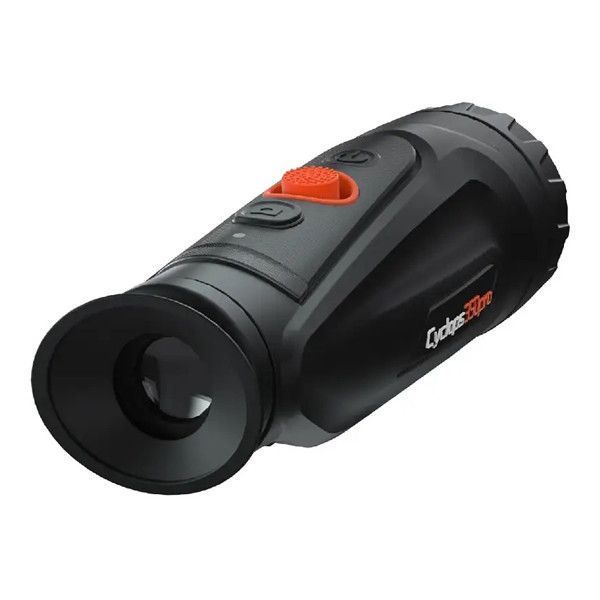

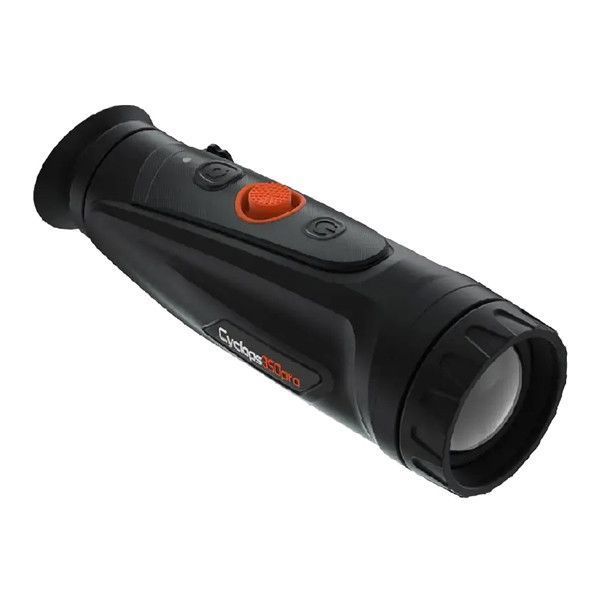

📝 Thermal Imager ThermTec Cyclops 350 Pro
Thermal Imager ThermTec Cyclops 350 Pro is a versatile thermal monocular equipped with a 384×288 VOx sensor (12 µm pixel pitch), 50 Hz refresh rate, and thermal sensitivity of NETD ≤25 mK, enabling reliable detection of heat signatures in complete darkness, fog, smoke, and adverse weather conditions. With a powerful 50 mm objective lens, the device provides human detection capability up to 2000 meters while maintaining clear thermograms and strong contrast at extended ranges.
Thermal Imager ThermTec Cyclops 350 Pro features a germanium F50/1.0 lens with a magnification range of 4.8×–28.8×, a 1024×768 OLED display, and electronic image stabilization that ensures stable and detailed imagery even during movement or handheld operation. The device supports GPS positioning, Wi-Fi video transmission, photo and video recording, and an intelligent stadia rangefinder based on machine learning algorithms for fast distance estimation.
🫡 We are a team of veterans
We evaluate thermal imaging equipment in conditions close to real operational use, where long detection range, thermogram stability, and effective handheld operation are critical. In field scenarios, Thermal Imager ThermTec Cyclops 350 Pro demonstrates high efficiency at long distances, providing clear detection of heat targets and stable tracking of moving objects.

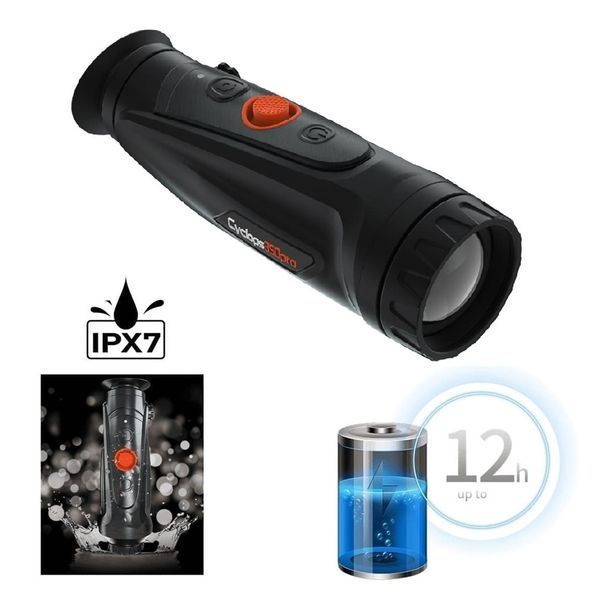

Electronic image stabilization, the powerful 50 mm objective, and the intelligent rangefinder significantly simplify the operator’s workflow during observation. The rugged IP67-rated housing and power supply from 18650 batteries allow prolonged use in harsh weather, reconnaissance missions, patrol operations, and extended observation duties.
⚙️ Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ThermTec |
| Model | Cyclops 350 Pro |
| Sensor | VOx, 12 µm |
| Sensor Resolution | 384×288 |

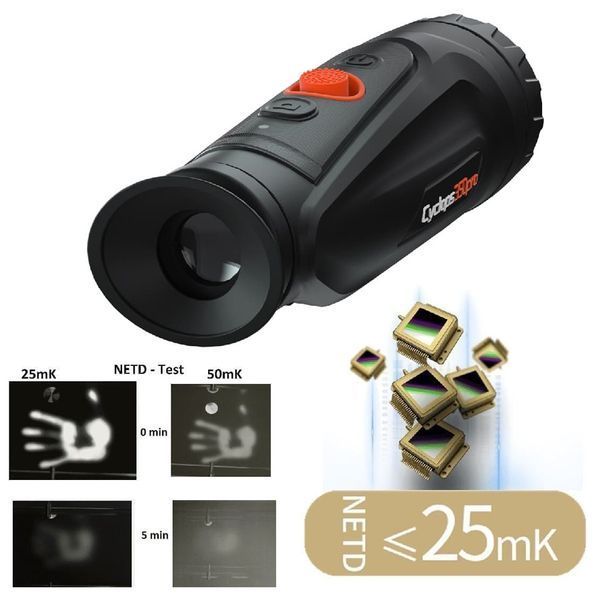

| Thermal Sensitivity | NETD ≤25 mK |
| Frame Rate | 50 Hz |
| Objective Lens | 50 mm, F/1.0, germanium |
| Field of View | 5.3° × 4.0° |
| Magnification | 4.8× – 28.8× |
| Field of View at 100 m | 9.3 × 7.0 m |
| Display | OLED, 1024×768 |
| Detection Range (human) | Up to 2000 m |
| Rangefinder | Stadia type, AI-based |
| Memory | 16 GB built-in |
| Functions | EIS, Wi-Fi, GPS, photo/video recording |
| Power Supply | 2× Li-ion 18650 batteries |
| Operating Time | ≥ 12 hours |
| Protection Rating | IP67 |
| Operating Temperature | −20…+55 °C |
| Dimensions | 67×63×190 mm |
| Weight | 550 g |
💬 Comment / comments
ThermTec Cyclops 350 Pro is intended for tasks where maximum detection range and image stability at long distances are critical. The powerful 50 mm objective combined with electronic stabilization allows efficient handheld operation and confident tracking of moving thermal targets.
The intelligent stadia rangefinder, GPS, and high-speed Wi-Fi extend the device’s functionality beyond observation, enabling real-time video transmission and coordination during operations. High autonomy and a sealed rugged housing make the model suitable for prolonged field deployment in demanding environments.
🎯 Who is it suitable for
Military units, UAV operators, reconnaissance teams, and observation groups that require a long-range thermal imager capable of detecting targets up to 2 km and maintaining stable tracking of moving heat signatures.
Security agencies and special services responsible for monitoring large territories, perimeters, and strategic facilities with accurate distance estimation to detected targets.
Rescue services and search teams operating in low-visibility environments — at night, in fog, or in smoke — where maximum detection range and stable thermal imagery are essential.
Hunters, ranger services, and professional observers who need a high-performance thermal imaging device with a powerful 50 mm optic, high magnification, and reliable operation in demanding field conditions.
