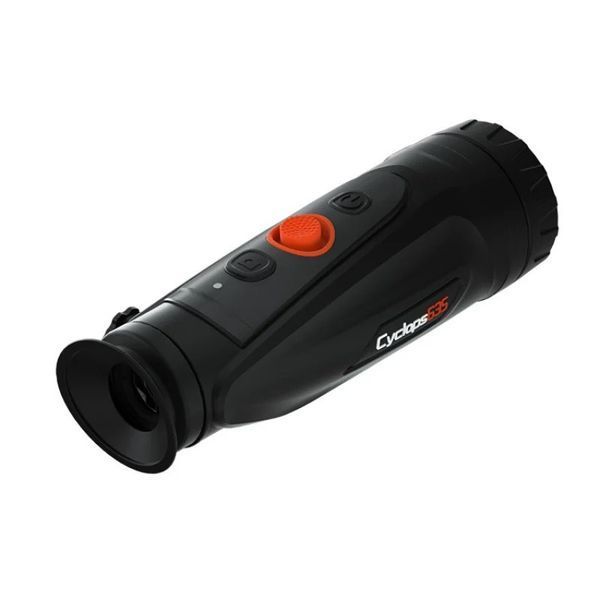

📝 Thermal imaging monocular ThermTec Cyclops 635 (640×512) 1800 m
The ThermTec Cyclops 635 thermal imaging monocular is a specialized device designed for observation of objects that emit heat. The device works with any objects that have thermal radiation. This radiation is called infrared and is invisible to the human eye, but the device reads it due to temperature differences and outputs the image to the display.
The model operates effectively in almost any conditions. It can be used equally efficiently both during the day and at night without loss of performance. Snow, rain, fog, dust or smoke do not interfere with high-quality observation and detection of thermal objects at long distances.
🫡 We are a team of veterans
We use thermal imaging devices in real combat and field conditions and understand the critical importance of stable detection, a clear thermogram and reliable equipment operation. The ThermTec Cyclops 635 demonstrates confident target detection, stable performance in harsh weather conditions and reliable housing during intensive field use in fog, rain, dust and smoke.
⚙️ Technical specifications
| Parameter | Value |
|---|---|
| Sensor resolution | 640×512 |
| Sensor type | VOx, 12 μm |
| Thermal sensitivity NETD | ≤40 mK |
| Spectral range | 8–14 μm |
| Display | OLED 1024×768 |
| Objective lens | 35 mm |
| Optical magnification | 1.97×–11.82× |
| Digital zoom | up to 6× |
| Field of view | 12.5°×10° |
| Eye relief | 40 mm |
| Diopter adjustment | -5…+5 |
| Human detection range | up to 1800 m |
| Human identification range | up to 875 m |
| Built-in memory | 16 GB |
| Photo and video recording | yes |
| Wi-Fi | yes |
| GPS | yes |
| Protection class | IP67 |
| Operating time | up to 12 hours |
| Power supply | Li-ion battery |
| Operating temperature | -20…+55 °C |
| Dimensions | 67×63×190 mm |
| Weight | 550 g |
💬 Comment / comments
The ThermTec Cyclops 635 is a thermal imaging monocular with a 640×512 sensor that provides increased thermogram detail and contrast. The model is oriented toward long-range observation and stable target detection in difficult weather conditions. The 35 mm objective lens provides a balance between detection distance and field of view, while built-in recording, Wi-Fi and GPS expand the functional capabilities of the device in real operational scenarios.
🎯 For whom it is suitable
Military units, reconnaissance and observation groups that require a high-resolution thermal imager with a detection range up to 1800 m for search, tracking and control of targets at any time of day.
Security units and special services that perform monitoring of territories, perimeters and critical infrastructure in low-visibility conditions and require a detailed thermogram for reliable detection of thermal objects.
Rescue and search teams working at night, in fog, smoke or harsh weather conditions and requiring a stable high-resolution thermal imaging monocular for rapid detection and tracking of people.
Hunters, ranger services and professional observers who need a universal thermal imaging monocular with long detection range, photo and video recording and long автономous operation for prolonged field observation.
